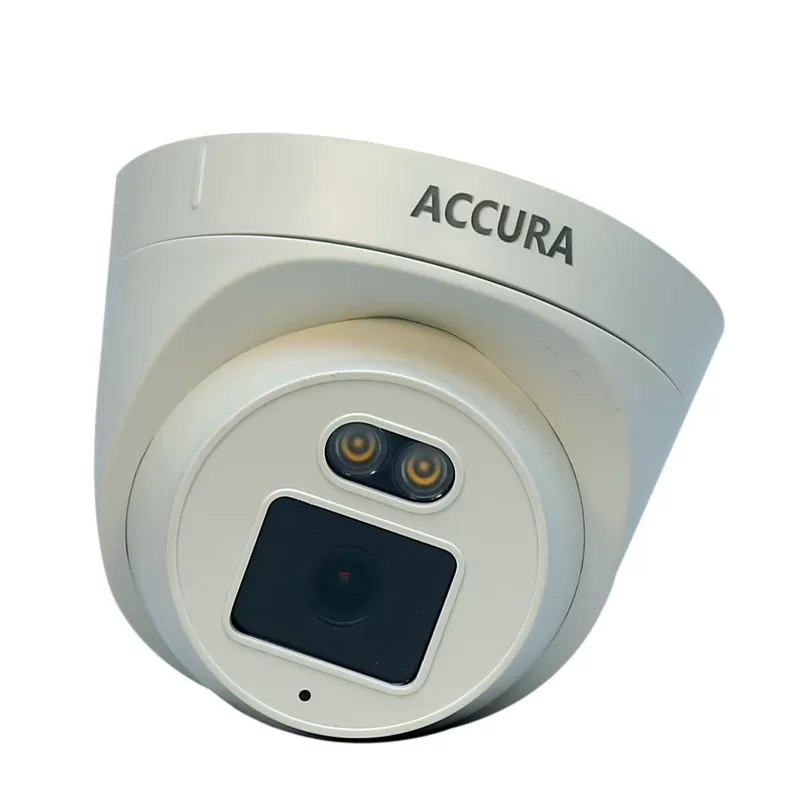

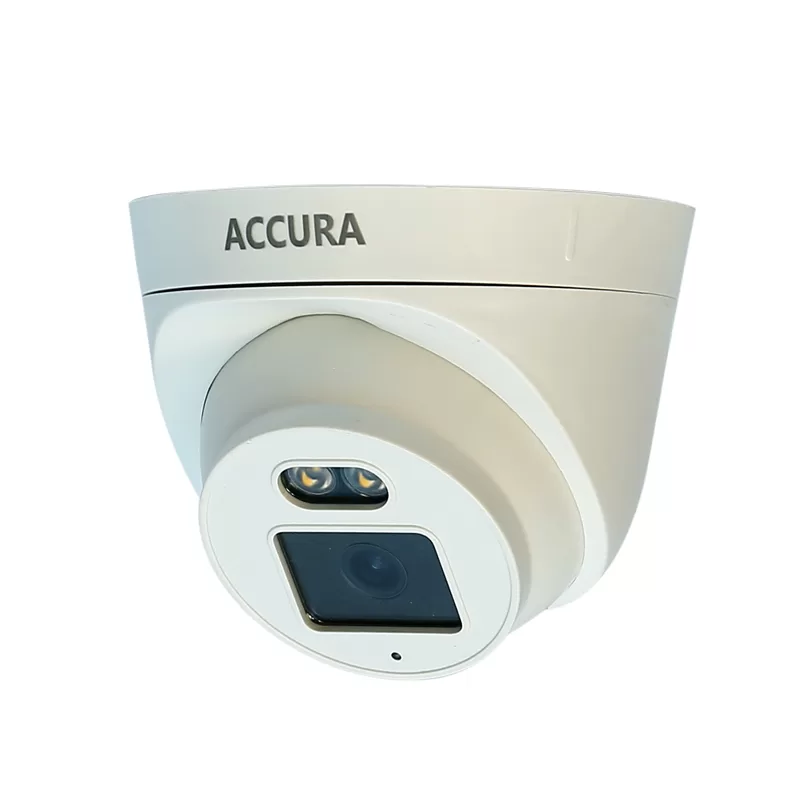

Accura 5MP Dome IP CCTV Camera






7570 11010





4MP ( 2592 X 1520 ) H.265 coding

Max. resoluition:  2592 x 1520

ICR auto swtich, true day/night, ROI Coding

3D DNR, Digital WDR, HLC, BLC, defog

10-20m IR night view distance

PoE power supply (optional)

1CH built-in MIC

P2P function optional

IP 67 ingress protection

Support dual streams

Support mobile surveillance by smart phones with  iOS and Android OS

Intelligent analytics: video blur detection, line crossing detection and region intrusion detection

Image Sensor – 1/3.2” CMOS

Image Size – 2592 x 1520

Electronic Shutter –  1/25 s ~ 1 / 100000 s

Iris Type – Fixed Iris

Min. Illumination : 0.012lux @F 1.2, AGC ON: 0 lux with IR

0.046lux @F 2.0, AGC ON: 0 lux with IR

Lens:  2.8mm @ F2.0, (fixed lens), horizontal field of view : 93.7 °

3.6mm @ F2.0, (fixed lens), horizontal field of view : 75.8 °

Lens Mount : M12

Wide Dynamic Range : Digital WDR

BLC : Yes

HLC : Yes

Defog :  Yes

Digital NR : 3D DNR

Angle Adjsutment : Pan: 0° ~ 360°;  Tilt 0° ~ 75°;  Rotation: 0° ~ 360°




Video Compression : H.265/ H.264/MJPEG

H.265 Compression: Main Profile @Leve4.1 High Tier

Resolution     –     1080P (1920 x 1080), 720P(1280 x 720), D1, 480 x 240, CIF

Main Stream –    60Hz: 1080P / 720P  (1~30fps);  50Hz: 1080P / 720P  (1~25fps)

Sub Stream –     60Hz: D1/CIF/ 480×240 (1~30fps); 50Hz: D1/CIF/ 480×240  (1~25fps)

Bit Rate –  64 Kbps ~ 6 Mbps

Bit Rate Type – VBR / CBR

Image Settings – ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NRI, etc. adjustable through client software or web browser

ROI – Each ROI to be configured separately



Interfaces

Network – RJ45

Video Output  – NO

Audio – 1CH built-In MIC

Storage – NO

Hardware Reset – No



Functions

Remote Monitoring – Web browsing, CMS remote control

Online Connection – Support Simultaneous monitoring for up to 3 users;

Support multi-stream real time transmission

Network Protocol –  UDP,IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS

Interface Protocol- ONVIF

Storage  – Network remote storage

Smart Alarm – Motion detection

Intelligent Analytics – Region intrusion detection,  video blur detection and line crossing detection

General Function – Watermark, IP address filtering, video mask, heartbeat, illegal login lock

PoE – Optional

IR Distance -10~20m

Ingress Protection – IP67



Others

Power Supply – DC12V(PoE power supply optional)

Power Consumption  –     <5W

Operating Environment :    -20°C  ~ 55°C(-4°F~131°F)

Humidity:  less than 95% (non-condensing)

Dimension(mm)  –  94.8 X 82.8

Weight(net)  – Approx. 0.287KG

Installation  – Ceiling mounting (Wall mounting available with the junction box and bracket)
